| 工作壓力 | 12 |
|---|---|
| 類型 | 液壓 |
| 外形尺寸 | 1*0.9*2.1 |
| 樣式 | 立式 |
| 運行方式 | 自動 |
| 重量 | 500 |
| 品牌 | 紐魯奇 |
| 型號 | NLQ-QJJ-660 |
| 加工定制 | 是 |
| 主電動機功率 | 4 |
| 切刀 | 單刀 |
| 切刀寬度 | 660 |
| 切膠刀行程 | 600 |
| 切膠力 | 160 |
| 切膠行程時間 | 16-25 |

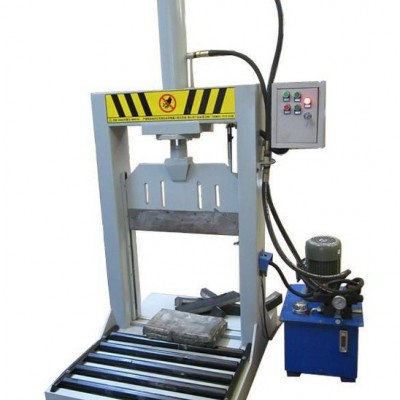

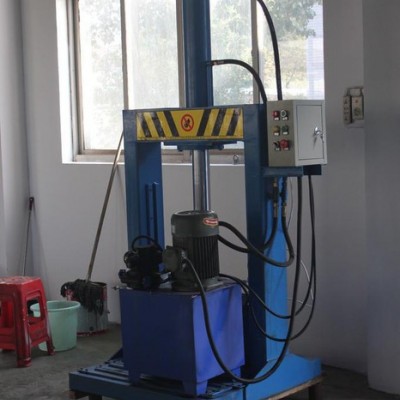

油壓切膠機
Hydraulic rubber cutting machine
1.適合于切割天然橡膠、合成膠及各種塑性材料。
2.本機產品全鋼板焊接,構造堅固,設計合理,占地面積小,單刀液壓工作,主要有切刀、機架、工作油缸、
生膠滾道和液壓系統組成。
3.本機適用于大型膠產品,管材、膠頭、輪胎等材料的截?cái)嘣偕谩?br />4.可以根據客戶要求加配腳電開關。
5.液壓系統控制,操作簡單、安全、剪切力大、生產率高。
1.It is suitable for cutting natural rubber, synthetic rubber and all kinds of plastic material.
2.This machine with steel plate welding, solid structure, reasonable design, less area, and single hydraulic working.
It consists of cutting knife, frame, main working cylinder, raw rubber of raceway and hydraulic system.
3.It is suitable for large rubber products, pipe material, plastic head, tires and recycling of material phase.
4.We can set foot electric switch according to your requirement.
5.With hydraulic system control, operation is simple, safe, with powerful shear force for the power-cutter and
high productivity.
| 型號Model | NLQ-QJJ-600 | NLQ-QJJ-800 | NLQ-QJJ-1000 |
| 切刀寬度 Rubber cutting wichth | 660mm | 800mm | 1000mm |
| 切膠行程 Rubber cutting stroke | 600mm | 800mm | 800mm |
| **大工作壓力 The maximum woking pressure | 16T | 20T | 40T |
| 功率 Power | 4kw | 5.5kw | 11kw |
| 切膠時間 Rubber cutting time | 16-25s | 20-50s | 30-60s |
| 重量 The weight | 500kg | 800kg | 1500kg |
| **大工作氣壓 Maxinmurn working pressure | 12MPa | 20MPa | 30MPa |
| 外形尺寸 Size of the machine | 1000*900*2100mm | 1250*1100*2500mm | 1400×1100×2500mm |
