加工定制 :	否	類型 :	塑料模架
品牌 :	progressive	型號(hào) :	PROGRESSIV密封圈
產(chǎn)品別名 :	噴嘴偏置塞扳手

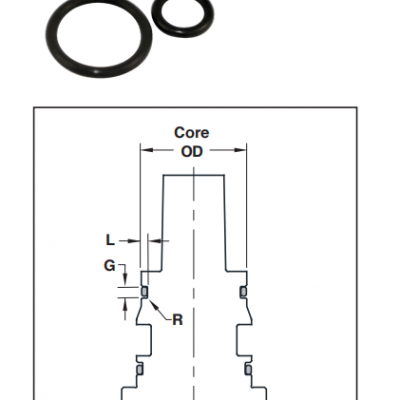

Core Seal Dimensions

Dash Number	Cross Section	g	l	r
-014		.093	.048	.005
through	1/16	to	to	to
-048		.098	.049	.015
-114		.140	.079	.005
through	3/32	to	to	to
-157		.145	.080	.015
-208		.187	.109	.005
through	1/8	to	to	to
-247		.192	.110	.015

Technical Information:

? Buna-N temperature range is -20° F to 225 °F (-28°C to 107°C)

? Viton? temperature range is -0° F to 400°F (-17°C to 204°C)

To Order:

? Buna-N O-Rings: Specify the prefix “OR” before the

dash number. Ex. OR-127 or OR-241.

? Viton O-Rings: Specify the prefix “OR” before the dash number and “-V” as the suffix. Ex. OR-127-V or OR-241-V.

? O-Rings are sold in quantities of 25.

1/16 cross section _3/3₂ cross section _1/₈ cross section nominal core dash core od dash core od dash core od diameter number +.000 number +.000 number +.000 - .001 - .001 - .001
5/8	-014	0.623	-	-	-	-
11/16	-015	0.685	-	-	-	-
3/4	-016	0.748	-	-	-	-
13/16	-017	0.81	-114	0.81	-	-
15/16	-019	0.935	-116	0.935	-209	0.934
1	-020	0.998	-117	0.998	-210	0.997
1-1/16	-021	1.06	-118	1.06	-211	1.059
1-1/8	-022	1.123	-119	1.123	-212	1.122
1-3/16	-023	1.185	-120	1.185	-213	1.184
1-1/4	-024	1.248	-121	1.248	-214	1.247
1-5/16	-025	1.31	-122	1.31	-215	1.309
1-3/8	-026	1.373	-123	1.373	-216	1.372
1-7/16	-027	1.435	-124	1.435	-217	1.434
1-1/2	-028	1.498	-125	1.498	-218	1.497
1-9/16	-	-	-126	1.56	-219	1.559
1-5/8	-029	1.623	-127	1.623	-220	1.622
1-11/16	-	-	-128	1.685	-221	1.684
1-3/4	-030	1.748	-129	1.748	-222	1.747
1-13/16	-	-	-130	1.81	-	-
1-7/8	-031	1.873	-131	1.873	-223	1.872
1-15/16	-	-	-132	1.935	-	-
2	-032	1.998	-133	1.998	-224	1.997
2-1/16	-	-	-134	2.06	-	-
2-1/8	-033	2.123	-135	2.123	-225	2.122
2-3/16	-	-	-136	2.185	-	-
2-1/4	-034	2.248	-137	2.248	-226	2.247
2-5/16	-	-	-138	2.31	-	-
2-3/8	-035	2.373	-139	2.373	-227	2.372
2-7/16	-	-	-140	2.435	-	-
2-1/2	-036	2.498	-141	2.498	-228	2.497
2-9/16	-	-	-142	2.56	-	-
2-5/8	-037	2.623	-143	2.623	-229	2.622
2-11/16	-	-	-144	2.685	-	-
2-3/4	-038	2.748	-145	2.748	-230	2.747
2-13/16	-	-	-146	2.81	-	-
2-7/8	-039	2.873	-147	2.873	-231	2.872
2-15/16	-	-	-148	2.935	-	-
3	-040	2.998	-149	2.998	-232	2.997
3-1/16	-	-	-150	3.06	-	-
3-1/8	-041	3.123	-151	3.185	-233	3.122
3-1/4	-	-	-	-	-234	3.247
3-3/8	-042	3.373	-	-	-235	3.372
3-7/16	-	-	-152	3.435	-236	3.497
3-5/8	-043	3.623	-	-	-237	3.622
3-11/16	-	-	-153	3.685	-	-
3-3/4	-	-	-	-	-238	3.747
3-7/8	-044	3.873	-	-	-239	3.872
3-15/16	-	-	-154	3.935	-	-
4	-	-	-	-	-240	3.997
4-1/8	-045	4.123	-	-	-241	4.122
4-3/16	-	-	-155	4.185	-	-
4-1/4	-	-	-	-	-242	4.247
4-3/8	-046	4.373	-	-	-243	4.372
4-7/16	-	-	-156	4.435	-	-
4-1/2	-	-	-	-	-244	4.497
4-5/8	-047	4.623	-	-	-245	4.622
4-11/16	-	-	-157	4.685	-	-
4-3/4	-	-	-	-	-246	4.747
4-7/8	-048	4.873	-	-	-247	4.872
