鍋爐用途	多用途

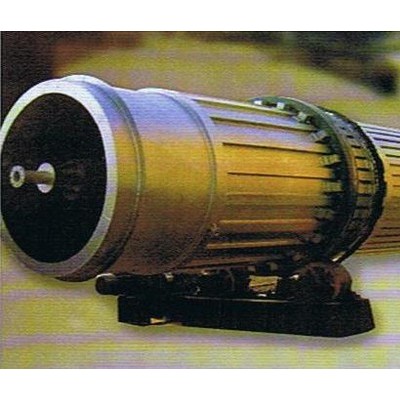

1.再生膠動態脫硫罐的主要用途（USE）：

再生膠動態脫硫罐主要用于將粉末狀硫化膠與軟化劑、活化劑及水等置于罐內，在連續攪拌下密閉加熱，以使膠粉達到均勻有效膠硫目地，是采用高溫動態脫硫新工藝的關鍵設備。
This product is used for that in order to reach even and effective desulfidation for rubber powder, put pulverous crosslinked rubber, softener, activator and water into the pot ,heat hermetically and mix contlnuously, adopted key equipment for the technology of high temperature dynamic desulfidation.

2.再生膠動態脫硫罐的產品特點(characteristics)：

    該產品為臥式II類壓力容器，用導熱油加熱。罐口開關門有全自動和手動二種形式供用戶選擇。罐體上部為加料口、下部為出料口。全自動動態罐開關門由液壓控制。手動動態罐開關門采用人工機械錯口手動開關門，以上兩種動態罐均與零壓開關連鎖，確保安全。攪拌器由JZQ系列減速器通過雙排鏈輪傳動或直給式轉動，正反轉可自動控制。攪拌漿形式為帶狀與附壁組合式。壓力容器部件按GB150-98《鋼制壓力容器》標準設計、制造。由河北省鍋爐壓力容器監督檢測所監檢驗收。
This product is a horizontal pressure vessel Type II, heats up with the heat conduction oil. Customers could select two ways-automatic and manual operation for pot gate opening and closing. Upside of the pot is charge port, and downside is discharge port. Full auto-dynamic pot opening and closing gate is controlled by hydraulic pressure. Adopt manual mechanical alternate out hand opening and closingate for the manual dynamic opening and closing gate. Above two dynamic pots are linked to the zero pressures witch to ensure safety. Adopt JZQ series reducer through douole row chain wheel rotating or direct driving for the blender, positive and negative rotating could be controlled automatically. The shape of mixing propeller is assorted of ribbon and mural. The parts of pressure vessel are designed and manufactured according to BG150-98 “Steel Pressure Vessel” and have been inspected examination and approved by. Hebei province Technology Inspection Office of Boiler and Pressure Vessel.

3.再生膠動態脫硫罐的技術參數：



參數 Parameter 內容Content	型號 Model
	ZT─3.3R		ZT─4.5R	ZT—6R		ZT—8R
容器設計壓力Design Pressure	2.1Mpa		2.1Mpa	2.1Mpa		2.1Mpa
容器工作壓力Working Pressure	1.8Mpa		1.8Mpa	1.8Mpa		1.8Mpa
容器設計溫度Design Temperature	2170C		2170C	2170C		2170C
容器工作溫度Working Temperature	2120C		2120C	2120C		2120C
夾套設計溫度 Jacket Design Temperature	3000C		3000C	3000C		3000C
夾套工作溫度jacket working temperature	﹤3000C		﹤3000C	﹤3000C		﹤3000C
有效容積Active Volume	3.0m3		4.5m3	6m3		8m3
攪拌器轉速Rotate Speed of Blender	16r/min		16r/min	15r/min		15r/min
夾套容積Jacket Volume	0.72m3		1.04m3	1.6m3		1.8m3
夾套設計壓力Design Pressuer of Jacket	0.1Mpa		0.1Mpa	0.1Mpa		0.1Mpa
夾套工作壓力Working Pressure of Jacket	常壓		常壓	常壓		常壓
加熱方式Heating Method	導熱油 Heat conduction oil
換熱面積Hear Exchange Area	8.18m2	12.55m2		15m2	17m2
電機功率Motor Power	15kw	18.5kw		18.5kw	18.5kw

動態脫硫罐性能參數：

參數 Parameter 內容Content	型號 Model
	ZT─3.3R		ZT─4.5R	ZT—6R		ZT—8R
容器設計壓力Design Pressure	3.0Mpa		3.0Mpa	3.0Mpa		3.0Mpa
容器工作壓力Working Pressure	2.85Mpa		2.85Mpa	2.85Mpa		2.85Mpa
容器設計溫度Design Temperature	2350C		2350C	2350C		2350C
容器工作溫度Working Temperature	2300C		2300C	2300C		2300C
夾套設計溫度 Jacket Design Temperature	3000C		3000C	3000C		3000C
夾套工作溫度jacket working temperature	﹤3000C		﹤3000C	﹤3000C		﹤3000C
有效容積Active Volume	3.0m3		4.5m3	6m3		8m3
攪拌器轉速Rotate Speed of Blender	16r/min		16r/min	15r/min		15r/min
夾套容積Jacket Volume	0.72m3		1.04m3	1.6m3		1.8m3
夾套設計壓力Design Pressuer of Jacket	0.1pa		0.1Mpa	0.1Mpa		0.1Mpa
夾套工作壓力Working Pressure of Jacket	常壓		常壓	常壓		常壓
加熱方式Heating Method	導熱油 Heat conduction oil
換熱面積Hear Exchange Area	8.18m2	12.55m2		15m2	17m2
電機功率Motor Power	15kw	18.5kw		18.5kw	18.5kw



動態脫硫罐性能參數：

參數 Parameter 內容Content	型號 Model
	ZT─3.3R		ZT─4.5R	ZT—6R		ZT—8R
容器設計壓力Design Pressure	4.0Mpa		4.0Mpa	4.0Mpa		4.0Mpa
容器工作壓力Working Pressure	3.65Mpa		3.65Mpa	3.65Mpa		3.65Mpa
容器設計溫度Design Temperature	2520C		2520C	2520C		2520C
容器工作溫度Working Temperature	2460C		2460C	2460C		2460C
夾套設計溫度 Jacket Design Temperature	3000C		3000C	3000C		3000C
夾套工作溫度jacket working temperature	﹤3000C		﹤3000C	﹤3000C		﹤3000C
有效容積Active Volume	3.0m3		4.5m3	6m3		8m3
攪拌器轉速Rotate Speed of Blender	16r/min		16r/min	15r/min		15r/min
夾套容積Jacket Volume	0.72m3		1.04m3	1.6m3		1.8m3
夾套設計壓力Design Pressuer of Jacket	0.1Mpa		0.1Mpa	0.1Mpa		0.1Mpa
夾套工作壓力Working Pressure of Jacket	常壓		常壓	常壓		常壓
加熱方式Heating Method	導熱油 Heat conduction oil
換熱面積Hear Exchange Area	8.18m2	12.55m2		15m2	17m2
電機功率Motor Power	15kw	18.5kw		18.5kw	18.5kw
