產品穿過開孔10落到收集箱12中，接著負壓吸附裝置9松開間隔件，將間隔件放置在下模3的內腔中，間隔件與下模3內壁有摩擦力，不會自動掉落，從而使裝置在收取成品時就能將間隔件放置在下模3內腔中，降低生產產品的繁瑣程度，降低工作人員的工作量，裝置中所用到的用電設備均通過導線和外部電源開關電性連接。其中，紹興伯朗特機械手誠信為本，底板4左側外壁與連接桿14固定連接，紹興伯朗特機械手誠信為本，連接桿14豎截面呈L型，紹興伯朗特機械手誠信為本，左側電動伸縮桿7左側頂部外壁與導向桿13固定連接，導向桿13左端與連接桿14遠離底板4的一端固定連接，伺服滑臺6移動時，使導向桿13帶著連接桿14將底板4從下模3底部拉走，方便打開下模3的底部；注塑機本體1底部外壁對稱設置有兩組連接塊11，連接塊11與注塑機本體1固定連接，連接塊11豎截面呈L形，收集箱12左右兩側頂部外壁均開設有連接槽，兩組連接塊11相互靠近的一端分別插接在兩組連接槽的內腔中，向前移動收集箱12，使連接塊11從連接槽中移出，使收集箱12與注塑機本體1連接斷開，方便取下收集箱12，注塑機本體1底部外壁與擋塊固定連接，擋塊前側外壁與收集箱12后側外壁相貼合，對收集箱12的位置進行阻擋，使收集箱12安放穩定；兩組電動伸縮桿7之間的間距大于下模3內腔豎截面的長度。

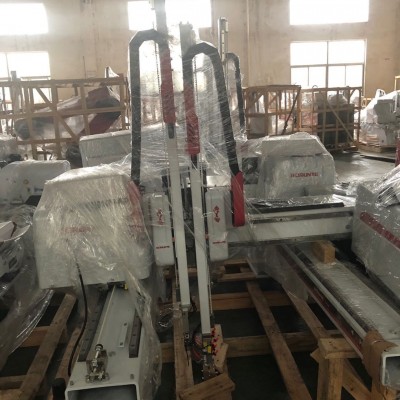

伺服橫走式機械手BRTA07/09系列適用于80T-320T的各型臥式射出成型機的成品及水口取出。上下手臂結構是雙截式，分單臂和雙臂，適合二/三板模具產品取出。橫行AC伺服馬達驅動，定位精細，速度快，壽命長，故障低。安裝機械手可增加產能(10-30％)、降低產品的不良率、保障操作人員的安全性、減少人工、精細控制生產量、減少浪費、保證交期BRTA07/09 Series traversing robot arm is applicable to alltypes of horizontal injection machine ranges of 807-320Tfor take-out products and sprues. Vertical arm is telescopictype, with product arm and runner arm, for two plate orthree plate mold products take out. Traverse axis driven byAC servo motor. After installed this robot, the productivitywill be increased 10-30%, reduce defective rate, ensuresafety of operators, reduce manpower and accuratelycontrol the output to reduce waste

BRTN Series is applicable to all types of horizontal injectionmachine ranges of 650T-3200T for take-out products and sprues

Three-axis driven by AC servo motor, take-out at suoernlgh-speedat most 2. 5sec. Easy for E-O-A-T adjustment, long using life andlow failure rate, applicable to take-out products with short formingcycle or complex automatic, such as auto products, washingmachine and household appliance products take-outHC three-axis/five axis CANOPEN connecting way.

Less connecting line, long distance communication, goodexpansibility, strong anti-interference abiliity, high repeatprecision, can simultaneously control multi axis, simple equipmentmaintenance. low failure rate
